Synthesis Control and Interfacial Flocculation Mechanism of High Cationic Charge Density Water-Soluble Polymers: From DADMAC Monomer Purity to PolyDADMAC Molecular Weight Distribution
In the field of water-soluble polymers, strong cationic polyelectrolytes have become core chemical agents for industrial aqueous suspension destabilization, pulp anionic trash neutralization, and anionic dye fixation due to their stable positive charge density across a wide pH range. PolyDADMAC (Polydiallyldimethylammonium chloride), as a typical acrylamide-free strong cationic polymer, derives its application performance largely from the synthesis purity of its monomer—DADMAC (Diallyldimethylammonium chloride)—and the molecular weight distribution control during free-radical cyclopolymerization.
Approaching this from the perspective of polymer chemistry and colloidal interface theory, clarifying the impact of trace impurities in DADMAC monomer on the molecular chain conformation of PolyDADMAC provides rigorous technical justification for selecting water treatment chemicals, papermaking wet-end chemicals, and textile dyeing auxiliaries.
1. Cyclopolymerization Mechanism and Side-Reaction Control of DADMAC Monomer

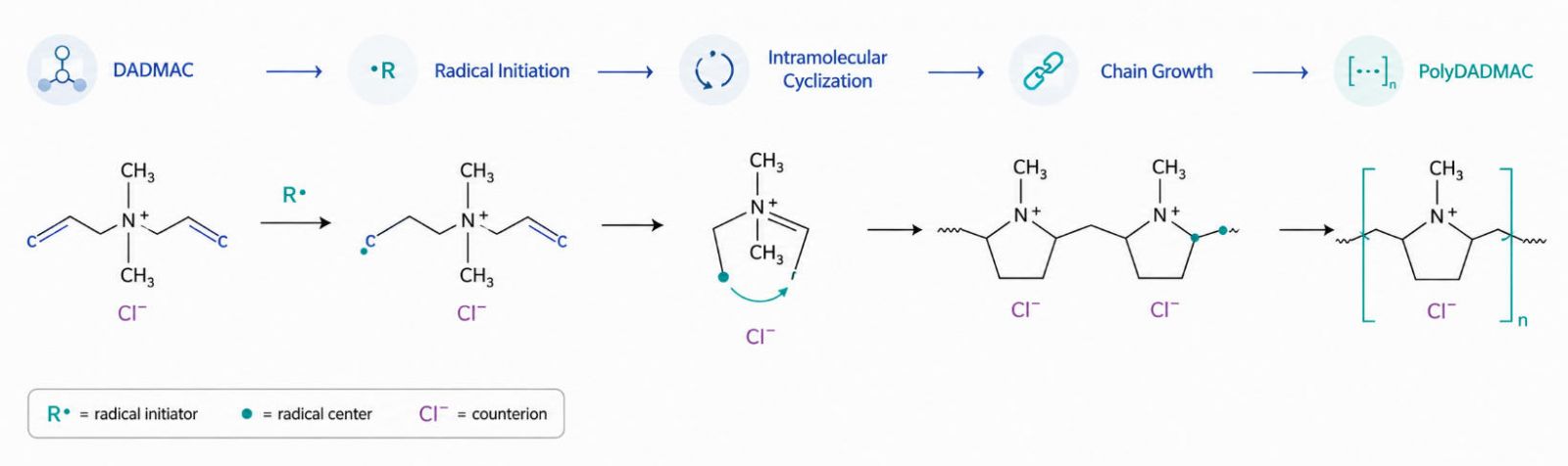

DADMAC (CAS: 7398-69-8) is a quaternary ammonium salt monomer containing two unconjugated allyl double bonds. Under the action of free-radical initiators, its polymerization follows an exclusive "cyclopolymerization" mechanism rather than forming highly cross-linked insoluble networks. Through kinetic control, chain-propagating radicals preferentially undergo intramolecular addition, forming a linear polyelectrolyte containing five-membered pyrrolidinium rings.
1. Initiator radicals add to the first allyl double bond of the DADMAC monomer, generating a non-cyclic intermediate radical;
2. The intermediate radical rapidly undergoes intramolecular cyclization, thermodynamically favoring the formation of a lower-energy, sterically favored five-membered ring radical over a six-membered ring;
3. The five-membered ring radical subsequently undergoes intermolecular addition with the next DADMAC monomer, sustaining linear polymer chain growth.
1.1 Effects of Residual Impurities on Degree of Polymerization and Charge Density
During the industrial synthesis of DADMAC monomers, inadequate reaction control can leave residual trimethylamine hydrochloride (TMA·HCl), free chlorine, allyl chloride (AC), and trace diallyl ether. These trace impurities pose multiple interferences to the subsequent synthesis of PolyDADMAC:
- Chain Transfer and Inhibition: Unreacted allyl compounds exhibit high chain transfer constants, precipitating a sharp drop in degree of polymerization. This results in lower relative molecular weight (Mw) PolyDADMAC, thereby weakening its long-chain bridging and destabilization capacity.
- Micro-crosslinking and Reduced Solubility: Multi-functional impurities may trigger localized branching or micro-crosslinking, causing dilute polymer solutions to form insoluble colloids or micro-gels that increase filtration resistance in water treatment systems.
Academic Literature and Standard Cross-Validation:
- • Butler, G. B. (1992). Cyclopolymerization and Cyclocopolymerization. Marcel Dekker, Inc. (Systematically establishes the thermodynamic mechanism of diallyl quaternary ammonium salt radical cyclization into five-membered rings).
- • Wandrey, C., et al. (1999). Polyelectrolytes with Quaternary Ammonium Groups. Advances in Polymer Science, 140, 201-261. (Clarifies the regularity of monomer impurities on the molecular weight distribution and water-soluble performance of quaternary ammonium polymers).
- • Group Standard T/ZZB 3886—2024: Diallyldimethylammonium Chloride (Regulates purity and impurity limit indices for industrial and water-treatment-grade DADMAC monomers).
2. Molecular Weight Control and Interfacial Flocculation Kinetics of PolyDADMAC
PolyDADMAC (CAS: 26062-79-3) fully ionizes in aqueous solutions, with its quaternary ammonium cationic charge density remaining independent of system pH (maintaining constant positive charge intensity across pH 1–14). In colloidal dispersion systems, PolyDADMAC's action mechanism relies primarily on "charge neutralization" and the "electrostatic patch mechanism".
.jpg)
| Technical Index / Performance Dimension | High-Molecular-Weight PolyDADMAC (Mw > 500,000) | Medium-Low-Molecular-Weight PolyDADMAC (Mw 100,000 - 300,000) | Traditional Inorganic Coagulants (e.g., PAC / Alum) |
|---|---|---|---|
| Primary Flocculation Mechanism | Charge Neutralization + Adsorption Bridging | Dominant Charge Neutralization + Electrostatic Patch | Double Layer Compression + Hydroxide Sweep Flocculation |
| Applicable pH Range | 4.0 – 10.0 (Structurally Stable) | 1.0 – 14.0 (Fully Ionized) | 6.0 – 8.5 (Vulnerable to Hydrolysis Equilibrium) |
| Sludge Volume & Secondary Residues | Compact Sludge, High Dewatering Efficiency | Low Sludge Volume, Zero Heavy Metal Residues | High Sludge Generation, Prone to Residual Aluminum/Iron |
| Compliance & Safety Control Focus | Must Control Free Residual Monomer (< 0.5%) | Complies with Drinking Water Toxicology Standards (NSF/ANSI 60) | Restricted by Residual Aluminum Limits in Drinking Water |
2.1 Electrostatic Patches and Charge Neutralization Sedimentation

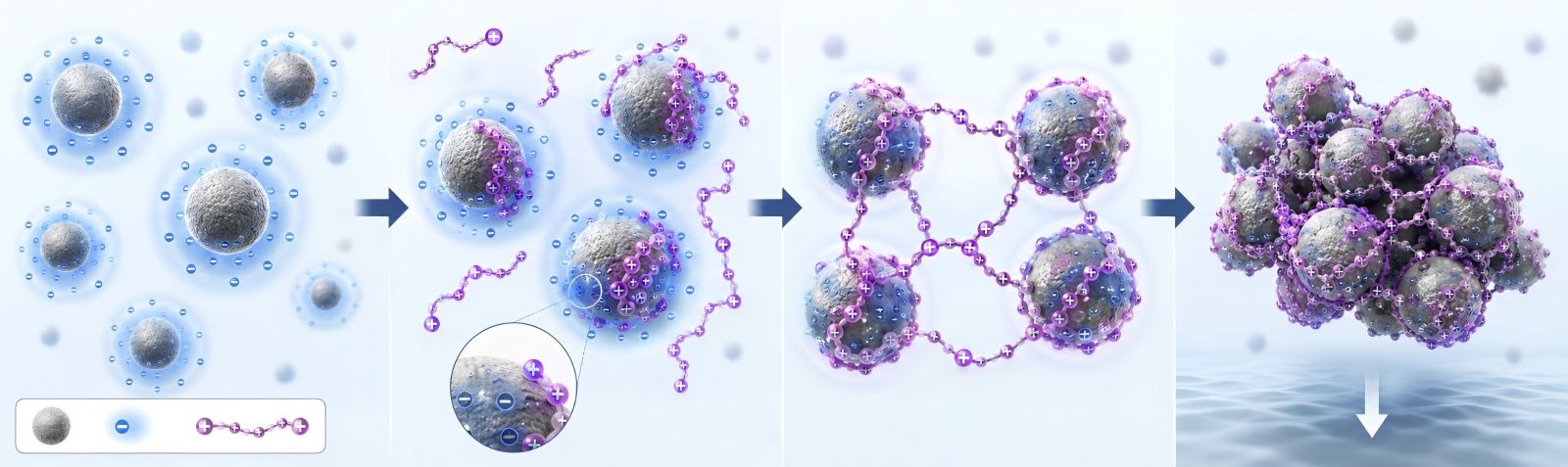

Suspended particles, algae, and organic humic acids in natural water bodies universally carry a negative charge (negative Zeta potential). When medium-low-molecular-weight PolyDADMAC is dosed, high-charge-density polymer chains rapidly adsorb onto particle surfaces, establishing localized positive charge zones (electrostatic patches). These positive regions form strong Coulombic attractions with unneutralized negative areas on adjacent particles, driving rapid microparticle aggregation and sedimentation.
2.2 Drinking-Water-Grade Compliance: NSF and REACH Standards
In drinking water purification, PolyDADMAC applications undergo stringent safety assessments. Because unreacted DADMAC monomers exhibit biological toxicity, international benchmark standards (such as U.S. NSF/ANSI Standard 60 certification) mandate strict upper limits for residual monomers in products. Driving monomer conversion rates beyond 99.5% and implementing optimized refining processes are vital to enhancing safety ratings.
Academic Literature and Standard Cross-Validation:
- • Bolto, B., & Gregory, J. (2007). Organic polyelectrolytes in water treatment. Water Research, 41(11), 2301-2324. (Analyzes the impact of charge density and molecular weight on polymer flocculant settling velocities in water treatment).
- • NSF/ANSI/CAN 60-2022: Drinking Water Treatment Chemicals - Health Effects (Regulates toxicological limits for residual monomers and impurities in water treatment chemicals).
3. Application Expansion of High-Cationic Polymers in Fine Chemicals
Beyond functioning as a core coagulant in water treatment, PolyDADMAC and its copolymers provide critical interfacial modification across paper making, textiles, and personal care formulations.
.png)
- Papermaking Industry (Wet-End Control): During high-speed papermaking, dissolved and colloidal anionic substances (anionic trash) accumulating in white water deplete retention aids. Dosing high-charge-density PolyDADMAC as an anionic trash catcher effectively neutralizes charge interference and stabilizes the wet-end chemical environment.

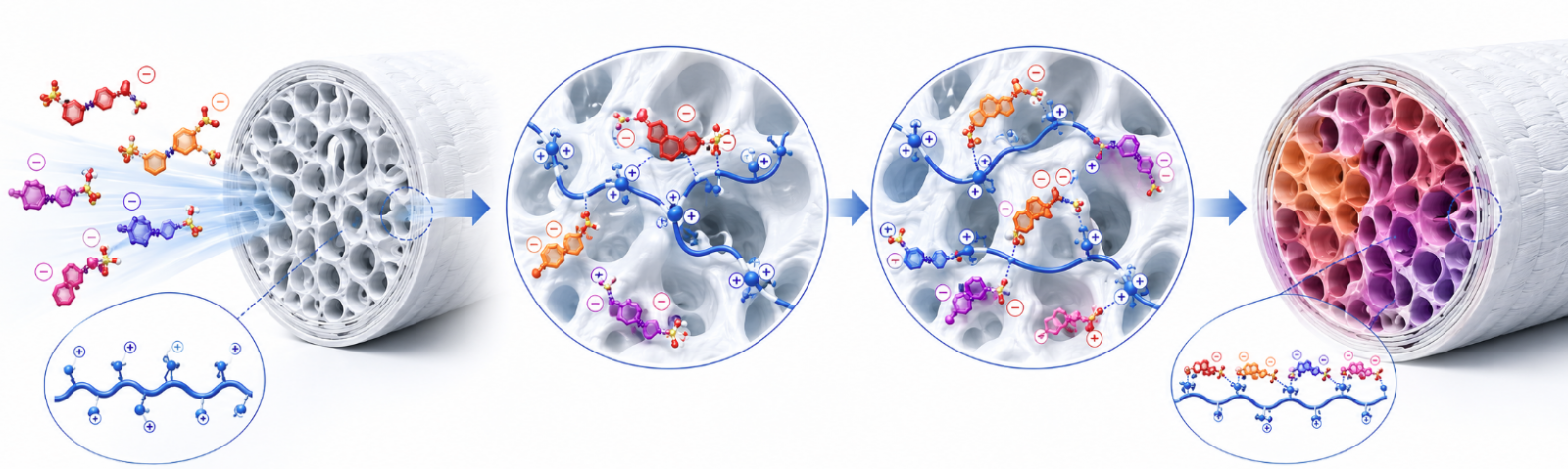

- Textile Printing and Dyeing (Formaldehyde-Free Fixing): Reactive dye molecules incorporate sulfonate and other anionic groups. The quaternary ammonium cations on PolyDADMAC chains bind with dye anions to form insoluble salts that deposit inside fibers, enhancing wet-fastness properties without releasing free formaldehyde.
- Personal Care (Conditioning Agents): Polyquaterniums generated by copolymerizing DADMAC with acrylamide (e.g., Polyquaternium-7) interact with negatively charged hair proteins in shampoos and conditioners, reducing static buildup and improving combability.
